CycleManip: Enabling Cyclic Task Manipulation via Effective Historical Perception and Understanding

Yi-Lin Wei1,*, Haoran Liao1,*, Yuhao Lin1, Pengyue Wang1, Zhizhao Liang1, Guiliang Liu1 Wei-Shi Zheng1,†
1Sun Yat-sen University, 2The Chinese University of Hong Kong, Shenzhen
*Equal contribution, Corresponding author

CycleManip performs various cycle-based manipulation tasks with different robot platforms.

Abstract

In this paper, we explore an important yet underexplored task in robot manipulation: cycle-based manipulation, where robots need to perform cyclic or repetitive actions with an expected terminal time. These tasks are crucial in daily life, such as shaking a bottle or knocking a nail. However, few prior works have explored this task, leading to two main challenges: 1) the imitation methods often fail to complete these tasks within the expected terminal time due to the ineffective utilization of history; 2) the absence of a benchmark with sufficient data and automatic evaluation tools hinders development of effective solutions in this area.

To address these challenges, we firstly propose the CycleManip framework to achieve cycle-based task manipulation in an end-to-end imitation manner without requiring any extra models, hierarchical structure or significant computational overhead. The core insight is to enhance effective history perception by a cost-aware sampling strategy and to improve historical understanding by multi-task learning. Secondly, we introduce a cycle-based task manipulation benchmark, which provides diverse cycle-based tasks, and an automatic evaluation method.

Extensive experiments conducted in both simulation and real-world settings demonstrate that our method achieves high success rates in cycle-based task manipulation. The results further show strong adaptation performance in general manipulation, and the plug-and-play ability on imitation policies such as Vision-Language-Action (VLA) models. Moreover, the results show that our approach can be applied across diverse robotic platforms, including bi-arm grippers, dexterous hands, and humanoid robots.

Challenges in Cyclic Manipulation


Traditional imitation policies fails to complete the cyclic tasks as they typically rely on short observation windows, leading to no cycling or infinite looping problems. (The four visualizations below are the results generated by the 3D Diffusion Policy.)

No Cycling
 Drum Hammering

No Cycling
  Dual-Knife Chopping (Sim)

Infinite Looping
  Bottle Shaking (Sim)

Infinite Looping
  Bottle Shaking (Real)

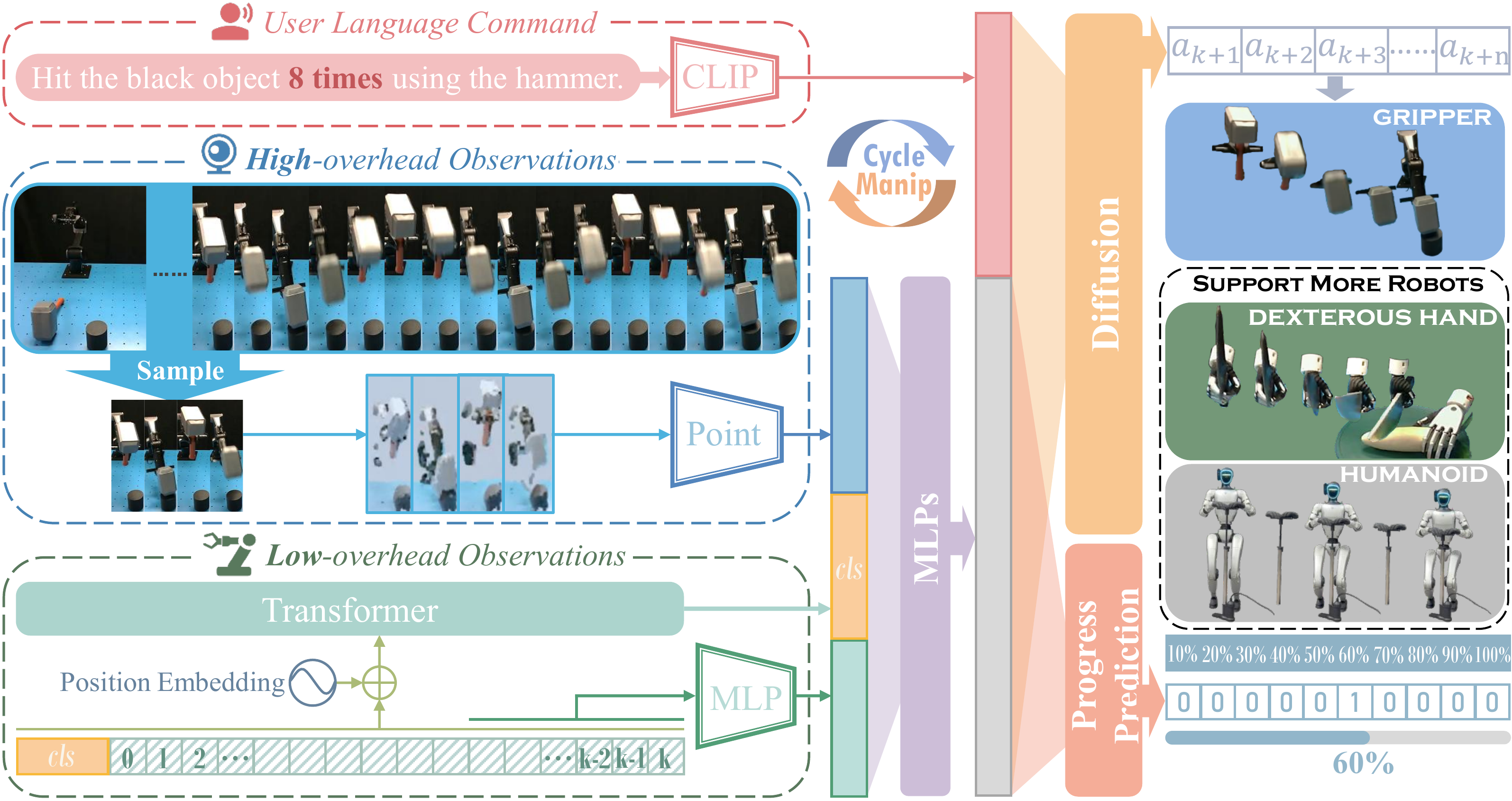

Method Overview


CycleManip framework enhances cyclic manipulation through
(1) effective historical perception (cost-aware sampling strategy) and (2)effective historical understanding (multi-task learning).

Method Overview

Simulation Benchmark Visualization


We build a cyclic benchmark for cyclic manipulation tasks, featuring 8 diverse cyclic tasks with automated data collection and evaluation systems.

Block Hammering

Bottle Shaking

Carrot Cutting

Chemistry Mixing

Dual-Knife Chopping

Egg Beating

Morse SOS

Roller Rolling

Real-World Task Visualization

Block Hammering

Bottle Shaking

Drum Hammering

Table Cleaning

Different Embodiments

Carrot Cutting (Dexterous Hand)

Tire Pumping (Humanoid)

Ours Framework Autonomous Execution Visualization

Command: Cut the carrot for n times

Experiments

Simulation Results

Method Block Hammering Bottle Shaking Roller Rolling Carrot Cutting Dual-Knife Chopping Egg Beating Chemical Mixing Morse Tapping
Suc. Cyc. Suc. Cyc. Suc. Cyc. Suc. Cyc. Suc. Cyc. Suc. Cyc. Suc. Cyc. Suc. Cyc.
DP 8 8.33 8 7.91 25 1.88 4 5.65 8 3.79 15 2.18 20 1.16 0 -
DP3 23 5.55 16 4.58 33 1.44 38 1.92 48 0.81 19 1.95 18 1.41 1 -
RDT 20 2.15 15 1.53 35 1.55 36 1.24 42 2.13 16 2.31 12 2.0 0 -
Pi-0 13 3.44 19 2.00 14 3.80 8 2.54 1 3.14 4 2.15 2 2.37 0 -
Ours 86 0.25 95 0.29 97 0.03 86 0.81 90 0.4 74 0.61 53 0.76 91 -

Suc. = Success Rate (%), Cyc. = Cycle Count Deviation

Real-World Results

Task Setting DP3 w/o Task Ours
Suc. Cyc. Suc. Cyc. Suc. Cyc.
Block Hammering Single Gripper 37.5 1.12 62.5 0.5 93.75 0.125
Bottle Shaking Single Gripper 12.5 3.81 31.25 1.31 68.75 0.375
Drum Beating Bi-Gripper 0 2.4 60 0.8 90 0.2
Table Cleaning Bi-Gripper 20 0.9 40 1.6 100 0.00
Tire Pumping Humanoid 10 3.70 20 2.0 50 1.5
Knife Cutting Bi-Dexterous 0 1.75 25 4.125 75 0.88

w/o Task = Ours without historical understanding
